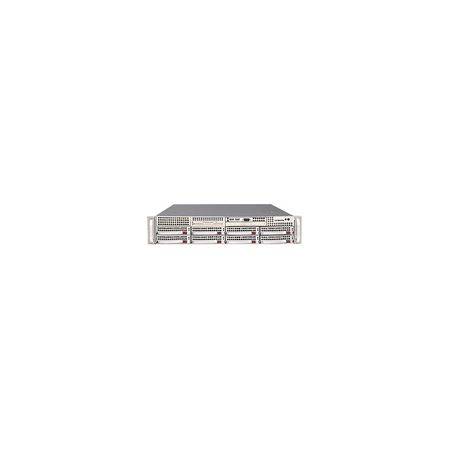

Supermicro SuperServer 6025B-TR+V Barebone System Item # 332646
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
332646
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The SuperServer 6025 series improves upon the winning formula of the previous 2U systems.
Product Details
| Item # | 332646 |
| Manufacturer # | 1210517 |
| Ethernet Technology | Gigabit Ethernet |
| Number of External 5.25" Bays | 1 |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon |
| height | 3.5 in |
| Total Number of USB Ports | 2 |
| Optical Media Supported | DVD-ROM |
| Number of PCI Express x4 Slots | 1 |
| Graphics Controller Manufacturer | ATI |
| Optical Drive Type | DVD-Reader |
| width | 16.8 in |
| Product Line | SuperServer |
| package contents | SuperServer 6025B-TR+V Barebone System; 1 x Super X7DBE+ Motherboard; 1 x 2U Silver Chassis; 1 x SAS / SATA Backplane; 6 x 16-pin to 16-pin Front Cable; 1 x 45cm Round Floppy Cable; 1 x 35cm 80-Wire IDE (DVD-ROM) Cable; 2 x 8-pin to 8-pin Ribbon Cable; 1 x Driver CD; 8 x Silver Hot-swappable Hard Drive Tray; 3 x 2U, 8cm 6300 RPM Fan; 2 x Heatsink / Retention; 1 x SC825 2U Chassis Mounting Rails; 1 x Panasonic 8x DVD, 24x CD, DVD-ROM Drive; 2 x 700W Redundant Power Supply; 1 x Power Distributor |
| Graphics Memory Capacity | 16 MB |
| depth | 25.6 in |
| Product Name | SuperServer 6025B-TR+V Barebone System |
| Rack Height | 2U |
| manufacturer | Supermicro Computer, Inc |
| Front Side Bus | 1333 MHz; 1066 MHz; 667 MHz |
| Number of 3.5" Bays | 10 |
| VGA | Yes |
| weight | 54.90 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 64 GB |
| controller type | Serial ATA/300; Ultra ATA/100 (ATA-6) |
| Number of Total Memory Slots | 16 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR2-667/PC2-5300 |
| Power Factor Correction | Yes |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 6 |
| Processor Socket | Socket J LGA-771 |
| Chipset Model | 5000P |
| Number of Total Expansion Bays | 11 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | ES1000 |
| form factor | Rack-mountable |
| Memory Technology | DDR2 SDRAM |
| color | silver |
| warranty length | 3-year limited |
| model name | 6025B-TR+V |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI-X Slots | 3 |
| Show More ▾ |
